LR 200 - NPP-NPPU-KDD-KDDU
KZ SERIES : LR 200 KDD LR 200 KDDU LR 200 NPP LR 200 NPPU
Category Track Roller Bearing
MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15, Stainless Steel 420 and 440
QUALITY : ABEC 1, ABEC3, ABEC5, ABEC7
LR 200 series track rollers are designed for linear motion on round shafts or guideways. They feature a deep groove ball bearing design with a thick-walled outer ring, offering high radial and axial load capacity. Variants include NPP/NPPU (with contact seals) and KDD/KDDU (with metal shields), providing protection against dust and contaminants. These rollers are ideal for use in automation, material handling, and transport systems where smooth, durable, and precise motion is required.
Applications and industry: Automotive, Food and beverage processing, Packaging, Textile and printing

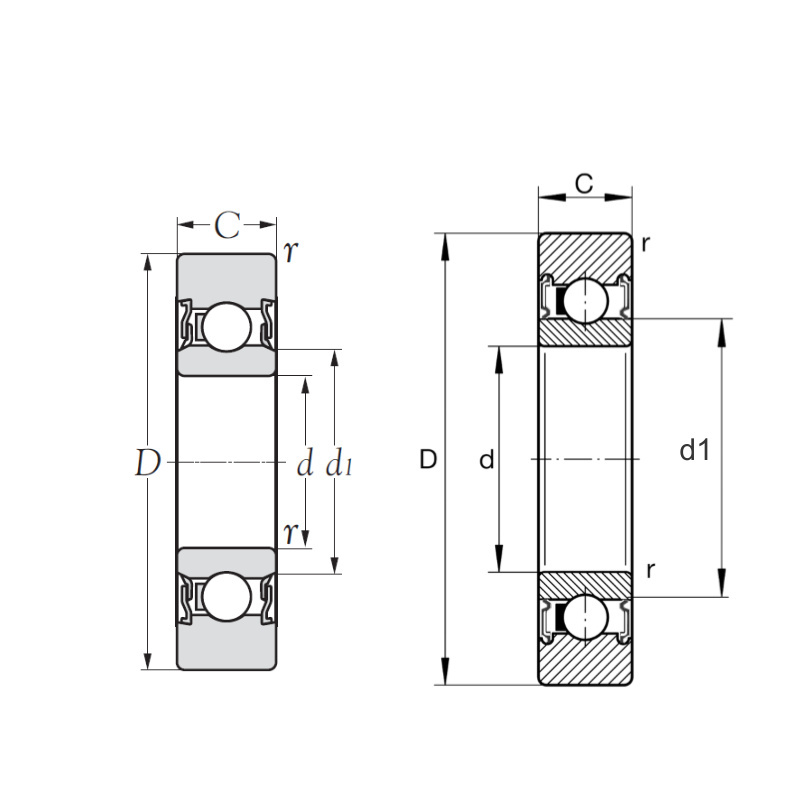

| Bearing Number | Inner Diameter (d) MM | Outer Diameter (D) MM | Width C | a | A1 | r1 Min | Dynamic Load Capacity | Static Load Capacity | LIMITTING SPEED ( R/MIN ) LUBRICATION Grease | LIMITTING SPEED ( R/MIN ) LUBRICATION Oil | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LR 200 KDD | 10 | 32 | 9 | 0.6 | 0.05 | ||||||
| LR 200 KDDU | 10 | 32 | 9 | 0.6 | 0.05 | ||||||
| LR 200 NPP | 10 | 32 | 9 | 0.6 | 0.05 | ||||||
| LR 200 NPPU | 10 | 32 | 9 | 0.6 | 0.05 | ||||||
| LR 201-15 KDD | 12 | 35 | 10 | 0.6 | 0.07 | ||||||
| LR 201-15 KDDU | 12 | 35 | 10 | 0.6 | 0.07 | ||||||
| LR 201-15 NPP | 12 | 35 | 10 | 0.6 | 0.07 | ||||||
| LR 201-15 NPPU | 12 | 35 | 10 | 0.6 | 0.07 | ||||||
| LR 201 KDD | 12 | 35 | 10 | 0.6 | 0.05 | ||||||
| LR 201 KDDU | 12 | 35 | 10 | 0.6 | 0.05 | ||||||
| LR 201 NPP | 12 | 35 | 10 | 0.6 | 0.05 | ||||||
| LR 201 NPPU | 12 | 35 | 10 | 0.6 | 0.05 | ||||||
| LR 202-14 KDDU | 15 | 40 | 11 | 0.6 | 0.08 | ||||||
| LR 202-14 KDD | 15 | 40 | 11 | 0.6 | 0.08 | ||||||
| LR 202-14 NPP | 15 | 40 | 11 | 0.6 | 0.08 | ||||||
| LR 202-14 NPPU | 15 | 40 | 11 | 0.6 | 0.08 | ||||||
| LR 202 KDD | 15 | 40 | 11 | 0.6 | 0.07 | ||||||
| LR 202 KDDU | 15 | 40 | 11 | 0.6 | 0.07 | ||||||
| LR 202 NPP | 15 | 40 | 11 | 0.6 | 0.07 | ||||||
| LR 202 NPPU | 15 | 40 | 11 | 0.6 | 0.07 | ||||||
| LR 203 KDD | 17 | 47 | 12 | 0.6 | 0.11 | ||||||
| LR 203 KDDU | 17 | 47 | 12 | 0.6 | 0.11 | ||||||
| LR 203 NPP | 17 | 47 | 12 | 0.6 | 0.11 | ||||||
| LR 203 NPPU | 17 | 47 | 12 | 0.6 | 0.11 | ||||||
| LR 204 KDD | 20 | 52 | 14 | 1 | 0.15 | ||||||
| LR 204 KDDU | 20 | 52 | 14 | 1 | 0.15 | ||||||
| LR 204 NPP | 20 | 52 | 14 | 1 | 0.15 | ||||||
| LR 204 NPPU | 20 | 52 | 14 | 1 | 0.15 | ||||||
| LR 205 KDD | 25 | 62 | 15 | 1 | 0.23 | ||||||
| LR 205 KDDU | 25 | 62 | 15 | 1 | 0.23 | ||||||
| LR 205 NPP | 25 | 62 | 15 | 1 | 0.23 | ||||||
| LR 205 NPPU | 25 | 62 | 15 | 1 | 0.23 | ||||||
| LR 206 KDD | 30 | 72 | 16 | 1 | 0.33 | ||||||
| LR 206 KDDU | 30 | 72 | 16 | 1 | 0.33 | ||||||
| LR 206 NPP | 30 | 72 | 16 | 1 | 0.33 | ||||||
| LR 206 NPPU | 30 | 72 | 16 | 1 | 0.33 | ||||||
| LR 207 KDD | 35 | 80 | 17 | 1.1 | 0.4 | ||||||
| LR 207 KDDU | 35 | 80 | 17 | 1.1 | 0.4 | ||||||
| LR 207 NPP | 35 | 80 | 17 | 1.1 | 0.4 | ||||||
| LR 207 NPPU | 35 | 80 | 17 | 1.1 | 0.4 | ||||||
| LR 208 KDD | 40 | 85 | 18 | 1.1 | 0.45 | ||||||
| LR 208 KDDU | 40 | 85 | 18 | 1.1 | 0.45 | ||||||
| LR 208 NPP | 40 | 85 | 18 | 1.1 | 0.45 | ||||||
| LR 208 NPPU | 40 | 85 | 18 | 1.1 | 0.45 | ||||||
| LR 209 KDD | 45 | 90 | 19 | 1.1 | 0.5 | ||||||
| LR 209 KDDU | 45 | 90 | 19 | 1.1 | 0.5 | ||||||
| LR 209 NPP | 45 | 90 | 19 | 1.1 | 0.5 | ||||||
| LR 209 NPPU | 45 | 90 | 19 | 1.1 | 0.5 |
